Print |
|
Print speed |
35 sec/page on D, 68 D prints
per hour1 |
Print resolution |
Up to 2400 x 1200 optimized dpi |
Technology |
HP Thermal Inkjet |
Margins |
Roll: 0.2 x 0.2 x 0.2 x 0.2 in
(5 x 5 x 5 x 5 mm) |
|
Sheet: 0.2 x 0.2 x 0.2 x 0.7 in
(5 x 5 x 5 x 17 mm) |
Ink types |
Dye-based (C, M, Y);
pigment-based (K) |
Page Yield |
20 ml of ink yields 101 A1/D
pages, taking into account maintenance routines2 |
Ink drop |
5.5 pl (C, M, Y); 12 pl (K) |
Printheads |
1 (cyan, magenta, yellow, black) |
Printhead nozzles |
1376 |
Line accuracy |
±0.1%3 |
Minimum line width |
0.0008 in (0.02 mm) |
Max optical density |
8 L* min/2.10 D4 |
Media |
|
Handling |
Sheet feed, roll feed, automatic
horizontal cutter |
Roll size |
11 to 24 in (279 to 610 mm) |
Sheet size |
8.3 x 11 to 24 x 74.7 in (210 x
279 to 610 x 1897 mm) |
Standard sheets |
A, B, C, D |
Grammage |
60 to 280 g/m2 |
Thickness |
Up to 11.8 mil |
Applications |
Line drawings; Presentations;
Renderings |
Memory |
512 MB |
Hard disk |
None |
Connectivity |
|
Interfaces |
Gigabit Ethernet (1000Base-T),
Hi-Speed USB 2.0, Wi-Fi 802.11 |
Print languages (standard) |
JPEG, URF |
Drivers |
Raster driver for Windows and
macOS |
Dimensions (w x d x h) |
|
Printer |
39.9 x 17.3 x 11.2 in (1013 x
440 x 285 mm) |
Shipping |
45.5 x 22.6 x 15.9 in (1155 x
575 x 405 mm) |
Weight |
|
Printer |
47.4 lb (21.5 kg) |
Shipping |
61.7 lb (28 kg) |
What's in the box |

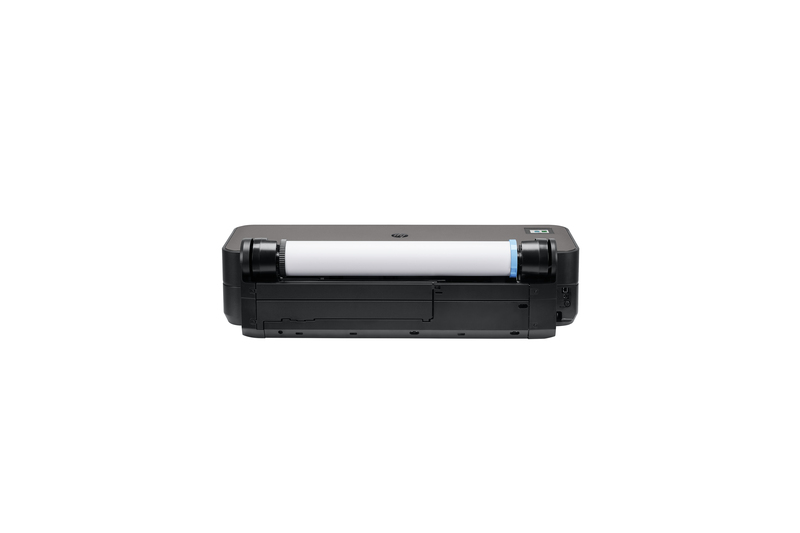

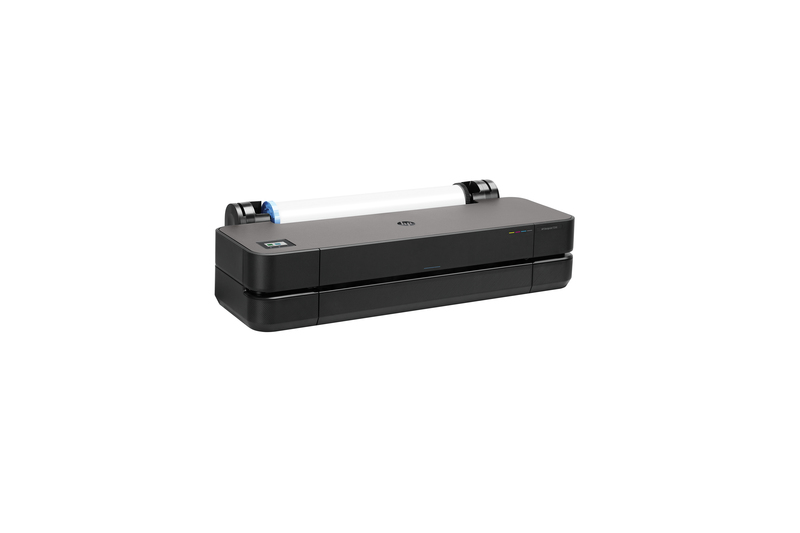

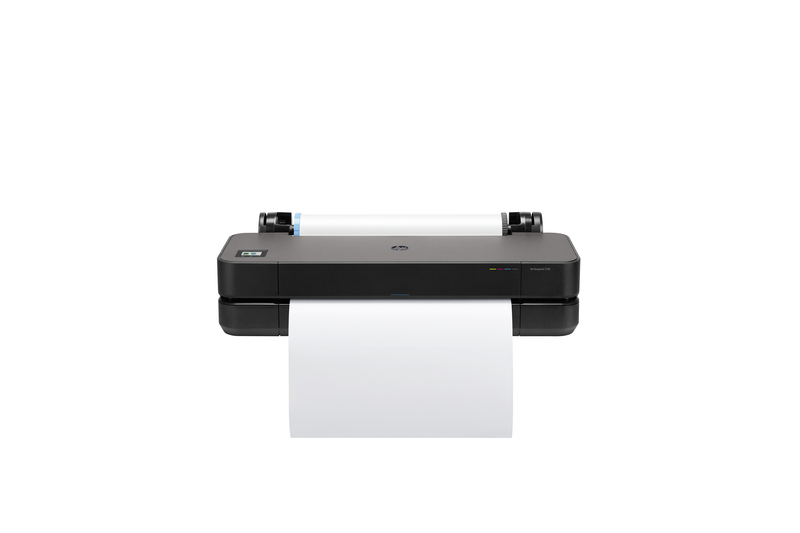

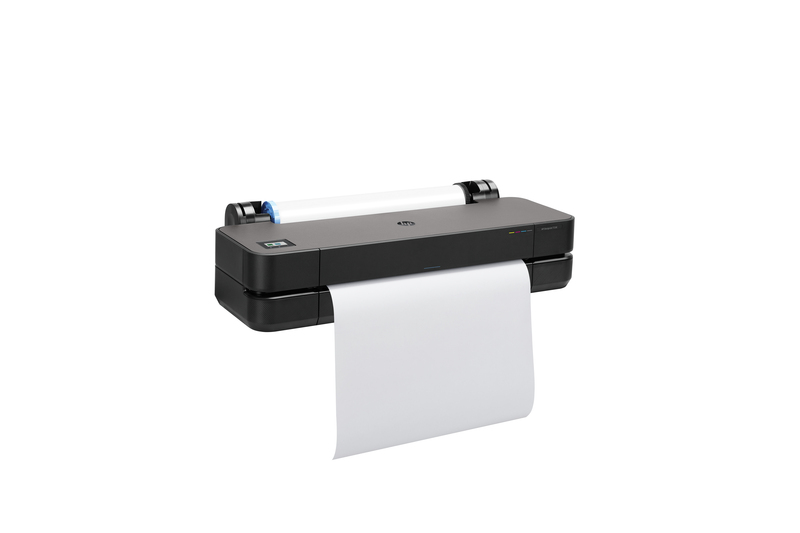

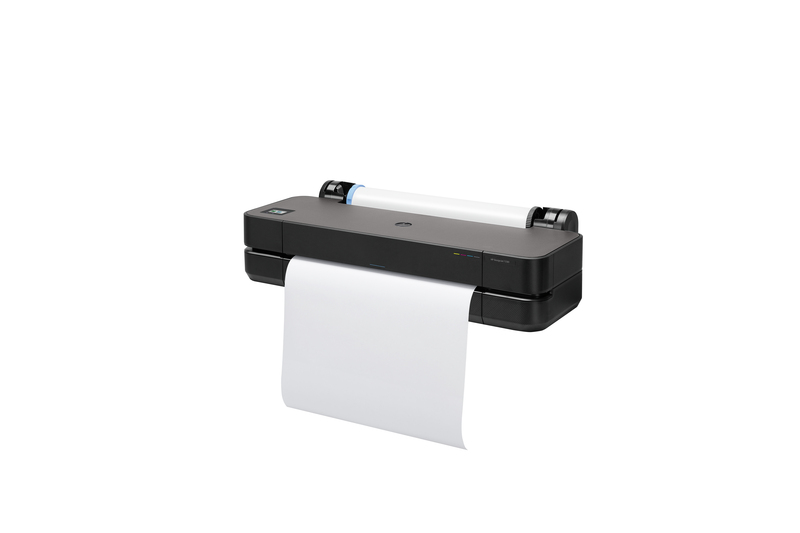

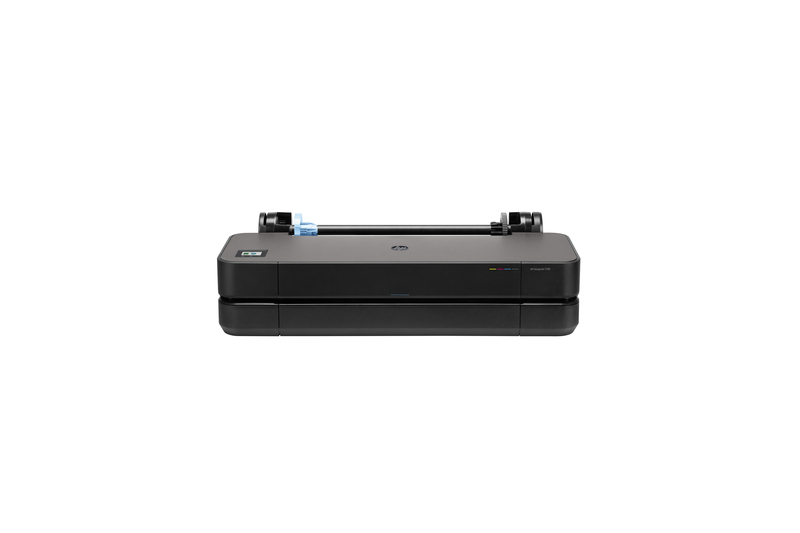

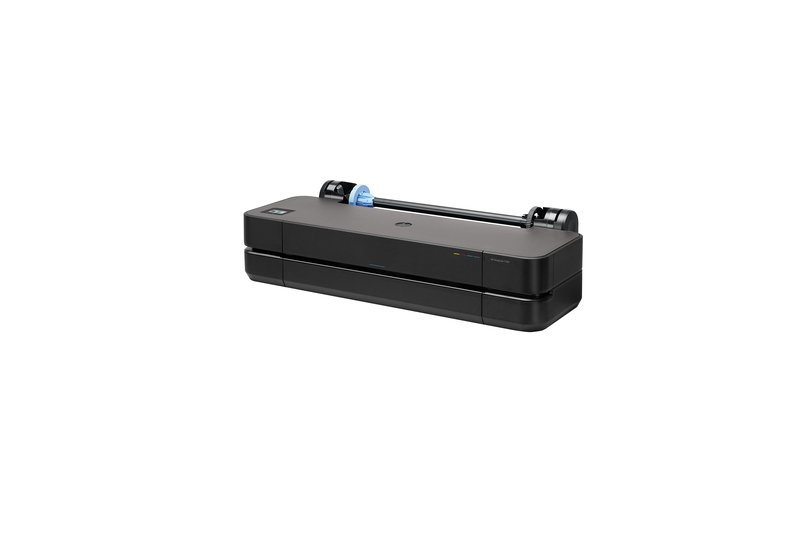

HP DesignJet T230 24-in Printer,
printhead, introductory ink cartridges, spindle, quick reference guide, setup
poster, power cord |
HP Software and solutions |
HP Click, HP Smart app, HP Print
Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP
Support Assistant |
Remote print enabled |
Yes |
One-click multi-size printing |
Yes |
Environmental ranges |
|
Recycled plastic in printer |
30% |
Operating temperature |
41 to 104oF (5 to 40oC) |
Operating humidity |
20 to 80% RH |
Operating altitude |
Up to 9843 ft |
Storage temperature |
-13 to 131oF (-25 to 55oC) |
Acoustics |
|
Sound pressure |
42 dB(A) (operating), <16
dB(A) (idle) |
Sound power |
>5.8 B(A) (operating),
<3.4 B(A) (idle) |
Power |
|
Consumption |
<35 W (printing), <5.6 W
(ready), <2.1 W (sleep), <0.2 W (standby) |
Requirements |
Input voltage (auto ranging):
100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
Certification |
|
Safety |
USA and Canada (CSA certified) |
Electromagnetic |
Compliant with Class B
requirements, including: USA (FCC rules), Canada (ICES) |
Environmental |
ENERGY STAR; WEEE; ErP; EPEAT
Gold |
Warranty |
One-year limited hardware
warranty |
