| Print |
|
| Print
speed |
24-in: 26 sec/page on A1, 81 A1
prints per hour |
|
36-in: 25 sec/page on A1, 82 A1
prints per hour1 |
| Print
resolution |
Up to 2400 x 1200 optimized dpi |
| Technology |
HP Thermal Inkjet |
| Margins |
Roll: 5 x 5 x 5 x 5 mm |
|
Sheet: 5 x 5 x 5 x 5 mm |
| Ink
types |
Dye-based (C, M, Y);
pigment-based (K) |
| Page
Yield |
20 ml of ink yields 101 A1/D
pages, taking into account maintenance routines2 |
| Ink drop |
5.5 pl (C, M, Y); 12 pl (K) |
| Printheads |
1 (cyan, magenta, yellow, black) |
| Printhead
nozzles |
1376 |
| Line
accuracy |
±0.1%3 |
| Minimum
line width |
0.02 mm |
| Max
optical density |
8 L* min/2.10 D4 |
| Media |
|
| Handling |
Sheet feed, roll feed, automatic
sheet feeder, media bin, automatic horizontal cutter |
| Roll
size |
24-in: 279 to 610 mm |
|
36-in: 279 to 914 mm |
| Sheet
size |
Auto sheet feeder: 210 x 279 to
330 x 482 mm |
|
24-in manual feed: 210 x 279 to
610 x 1897 mm |
|
36-in manual feed: 210 x 279 to
914 x 1897 mm |
| Standard
sheets |
Auto sheet feeder: A4, A3 |
|
24-in manual feed: A4, A3, A2,
A1 |
|
36-in manual feed: A4, A3, A2,
A1, A0 |
| Grammage |
60 to 280 g/m2 (roll/manual
feed); 60 to 220 g/m2 (auto sheet feeder) |
| Thickness |
Up to 0.3 mm |
| Applications |
Line drawings; Presentations;
Renderings |
| Memory |
1 GB |
| Hard
disk |
None |
| Connectivity |
|
| Interfaces |
Gigabit Ethernet (1000Base-T),
Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n |
| Print
languages (standard) |
HP-GL/2, HP-RTL, CALS G4, JPEG,
URF |
| Drivers |
Raster driver for Windows and
macOS |
| Dimensions
(w x d x h) |
|
| Printer |
24-in: 1013 x 555 x 932 mm |
|
36-in: 1317 x 555 x 932 mm |
| Shipping |
24-in: 1199 x 590 x 524 mm |
|
36-in: 1470 x 575 x 646 mm |
| Weight |
|
| Printer |
24-in: 33.6 kg |
|
36-in: 41.7 kg |
| Shipping |
24-in: 43 kg |
|
36-in: 62 kg |
| What's
in the box |

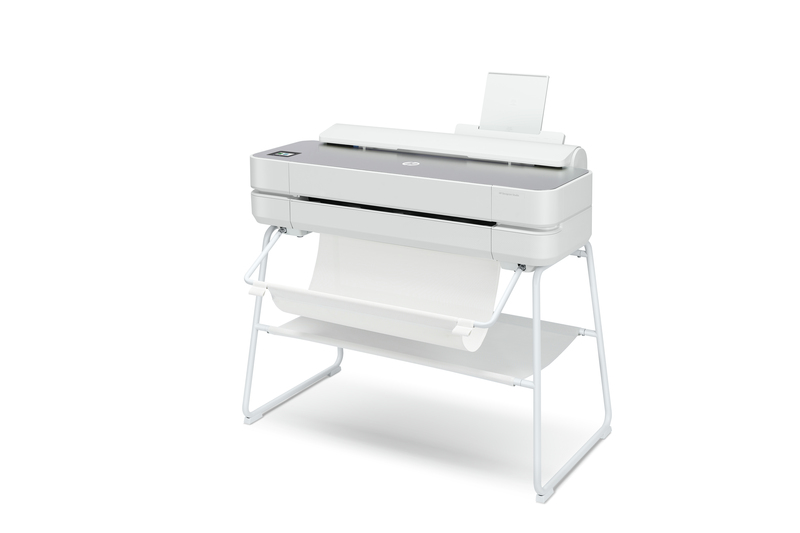

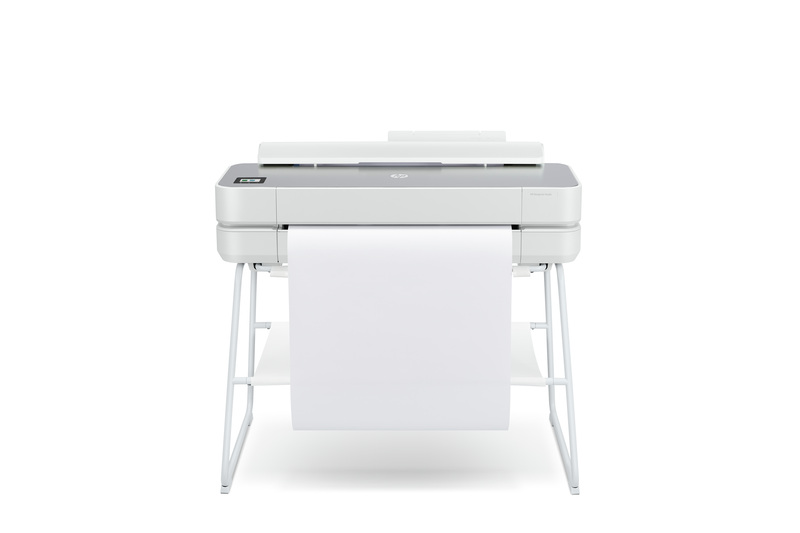

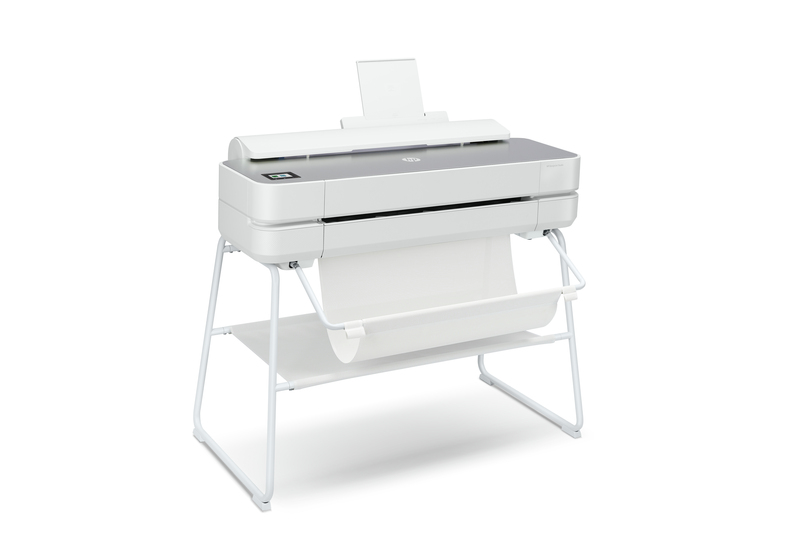

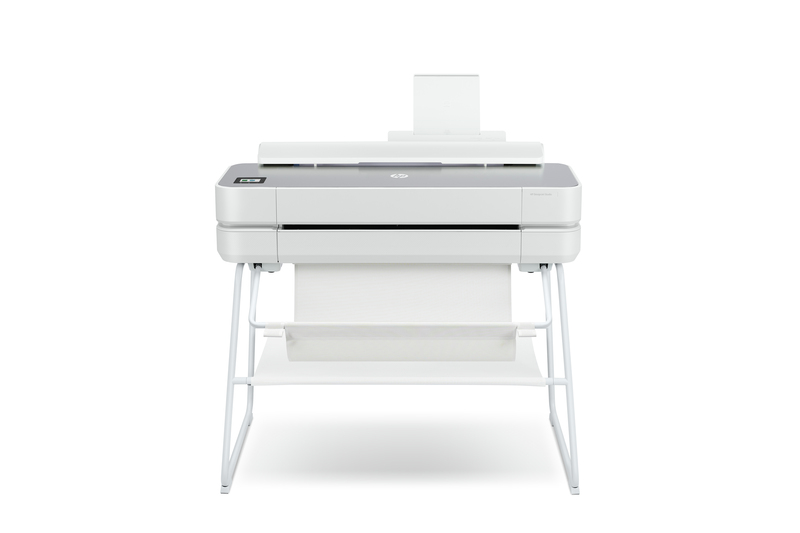

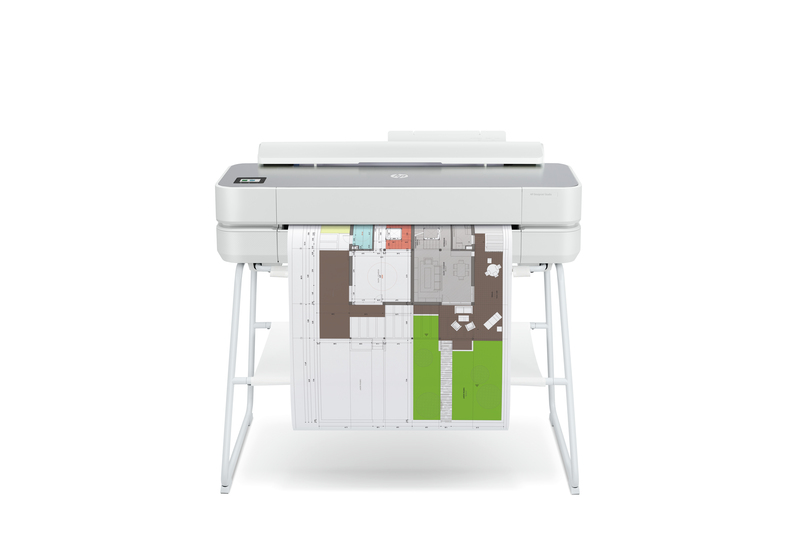

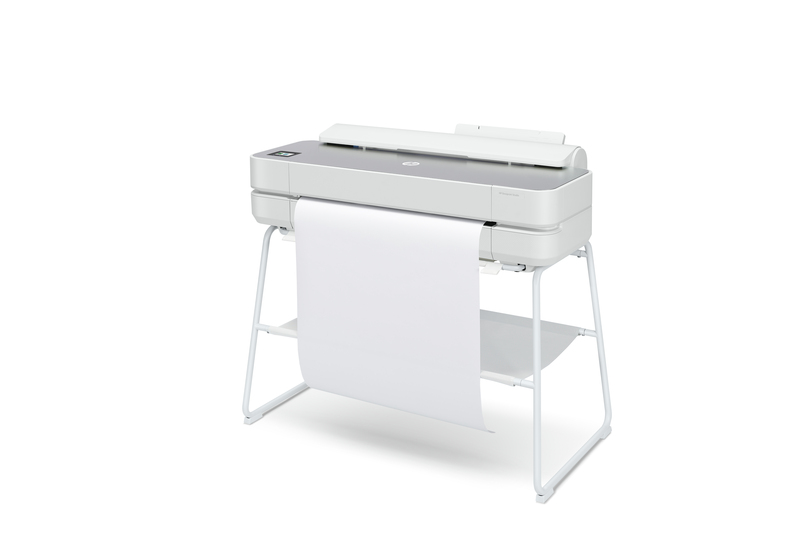

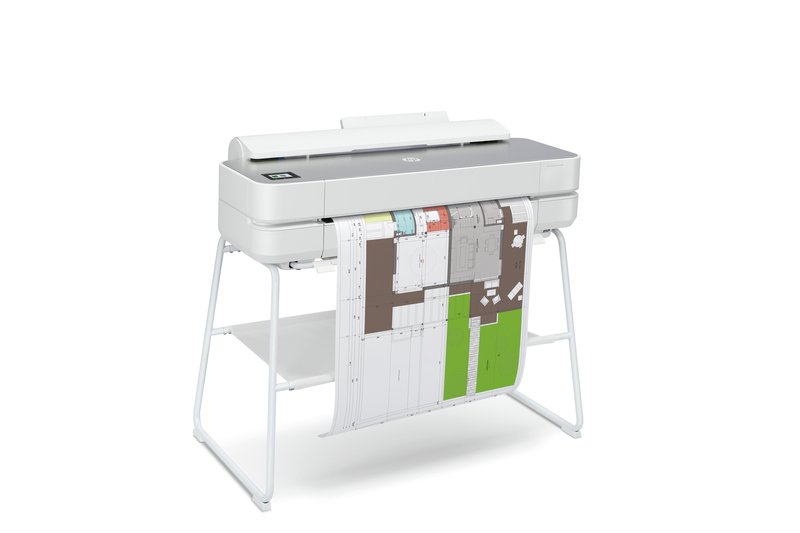

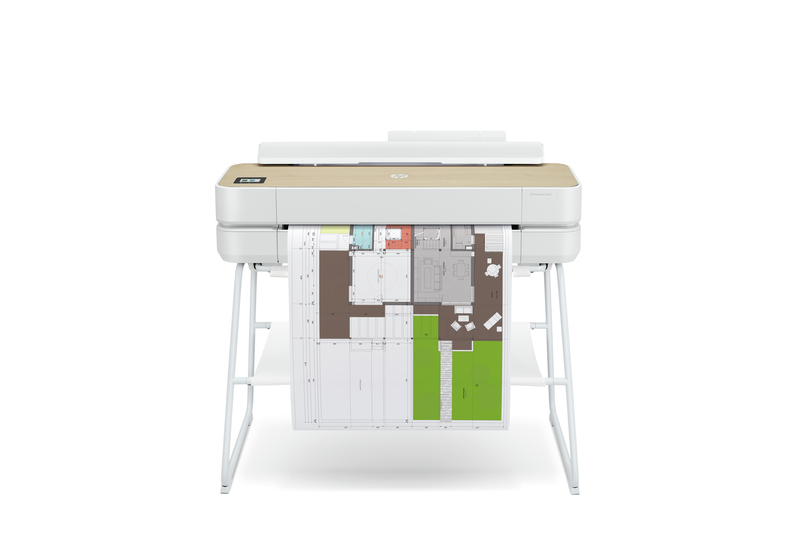

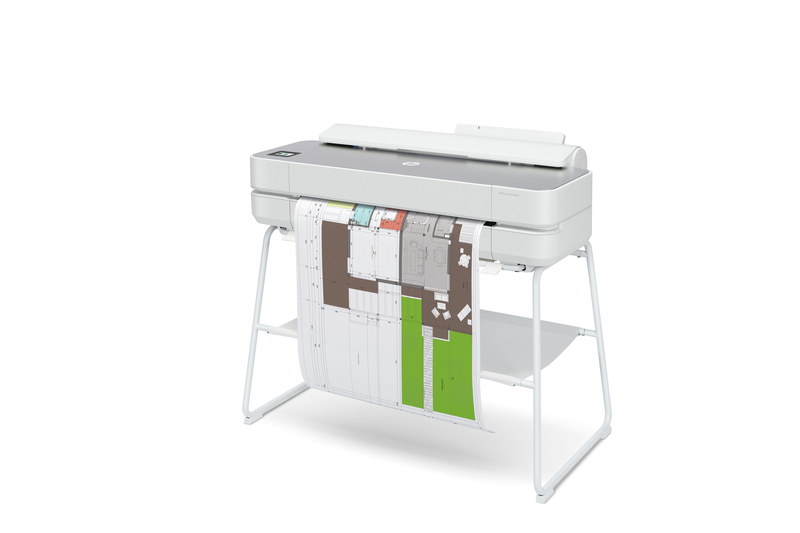

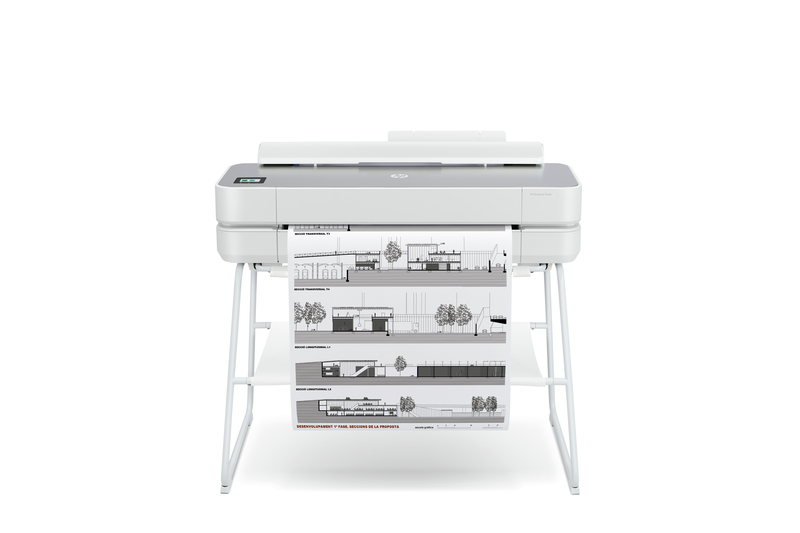

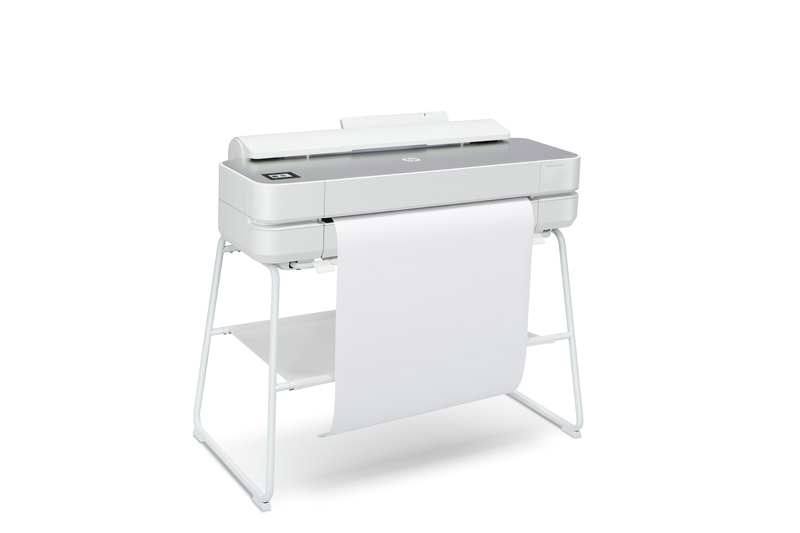

HP DesignJet Studio series
printer, printer stand, automatic sheet feeder, roll cover, printhead,
introductory ink cartridges, |
|
spindle, quick reference guide,
setup poster, power cord |
| HP
Software and solutions |
HP Click, HP Smart app, HP Print
Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP
Support |
|
Assistant |
| Remote
print enabled |
Yes |
| One-click
multi-size printing |
Yes |
| Environmental
ranges |
|
| Recycled
plastic in printer |
10% |
| Operating
temperature |
5 to 40oC |
| Operating
humidity |
20 to 80% RH |
| Operating
altitude |
Up to 3000 m |
| Storage
temperature |
-25 to 55oC |
| Acoustics |
|
| Sound
pressure |
42 dB(A) (operating), <16
dB(A) (idle) |
| Sound
power |
5.8 B(A) (operating), <3.4
B(A) (idle) |
| Power |
|
| Consumption |
<35 W (printing), <5.6 W
(ready), <2.1 W (sleep), <0.2 W (standby) |
| Requirements |
Input voltage (auto ranging):
220-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
| Certification |
|
| Safety |
EU (LVD, EN 60950-1 and EN
62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA) |
| Electromagnetic |
Compliant with Class B
requirements EU (EMC/RED Directives) |
| Environmental |
ENERGY STAR; WEEE; EU RoHS; EAEU
RoHS; REACH; ErP |
| Warranty |
Two-year limited hardware
warranty. |
